Caster Parts
- Top PlateTop plate or mounting plate is where the caster attaches to the frame and/or equipment. The bolt holes or mounting holes and the spacing between them need to be considered for proper installation.
- Raceware & BearingsTop section of the caster in which ball bearings swivel 360° within a machined track.
- YokeMetal frame of the caster that holds the wheel in place. Can be rigid or swivel. Sometimes referred to as a fork or rig.
- HubA caster's hub material can be made from different materials depending on the characteristics needed for it's applications.
- Axle Bolt w/ Grease Zerk FittingThe axle bolt attaches the wheel onto the yoke (the frame of the caster).
- BrakeThe brake can attached on the side or top of the yoke, and when depressed, stops the wheel from rolling.
- WheelThe wheel can be made of various materials and can be attached to a hub (of different material) or can have a solid core.
Mounting Types

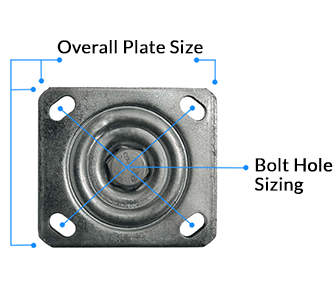

Top Plate
Threaded Stem

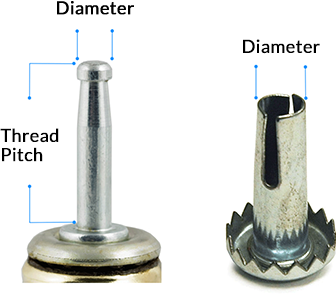

Grip Neck Stem
Grip Ring Stem
Expanding Stem
Stemless

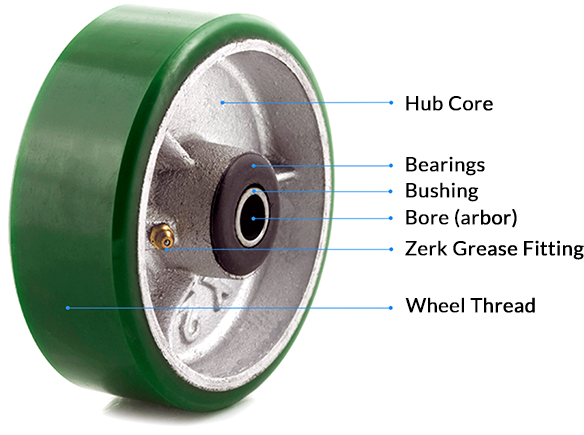

Wheel Parts
- Hub CoreA hub's core material can be made from different materials depending on the characteristics needed for it's applications.
- BearingsWheel bearings provide either mechanical rolling assistance or a slick surface that reduces friction and increases roll-ability. Raceway bearings are a device on a swivel caster, enabling it to turn while bearing the load.
- BushingA metal sleeve that fits in the hub core in which an axle revolves and protects the wheel from contacting the housing.
- Bore (arbor)Distance measured through the center of the wheel.
- Zerk Grease FittingGrease fitting on wheels, caster raceways or axles.
- Wheel Threada measurement of one side of the wheel to the other.
Wheel Measurements
Wheel Diameter
Thread Width
Bore Inner Diameter
Hub Length
Centered Hub
Offset Hub
Website Material Guide
Materials
Details
POLYURETHANE
w/ Polypropylene Core
One-Piece Molded Conventional hard rubber construction.
BENEFITS OF WHEEL MATERIAL:
- -Provides Quite Operations
- -Good Floor Protection
- -Excellent Rollability & easy Start-Up
- -Resistant to: chemicals, grease, oils, solvents
- -Temperature rated @ -20 deg to + 160 deg
- -Repels Flor Debris
- -Great For Asphalt or Convrete
- -Applications: Factory carts, trash dumpsters.
HARD RUBBER
One-Piece Molded Conventional hard rubber construction.
BENEFITS OF WHEEL MATERIAL:
- -Provides Quite Operations
- -Good Floor Protection
- -Excellent Rollability & easy Start-Up
- -Resistant to: chemicals, grease, oils, solvents
- -Temperature rated @ -20 deg to + 160 deg
- -Repels Flor Debris
- -Great For Asphalt or Convrete
- -Applications: Factory carts, trash dumpsters.
